Telemetry Comparison

Please check this brief comparison table of our telemetry lineup, if you have any questions please contact us

Telemetry Long Range 1W 3DR1060 3DR1060 Air Dual Band WiFi Telemetry
Status in production in production in production in production

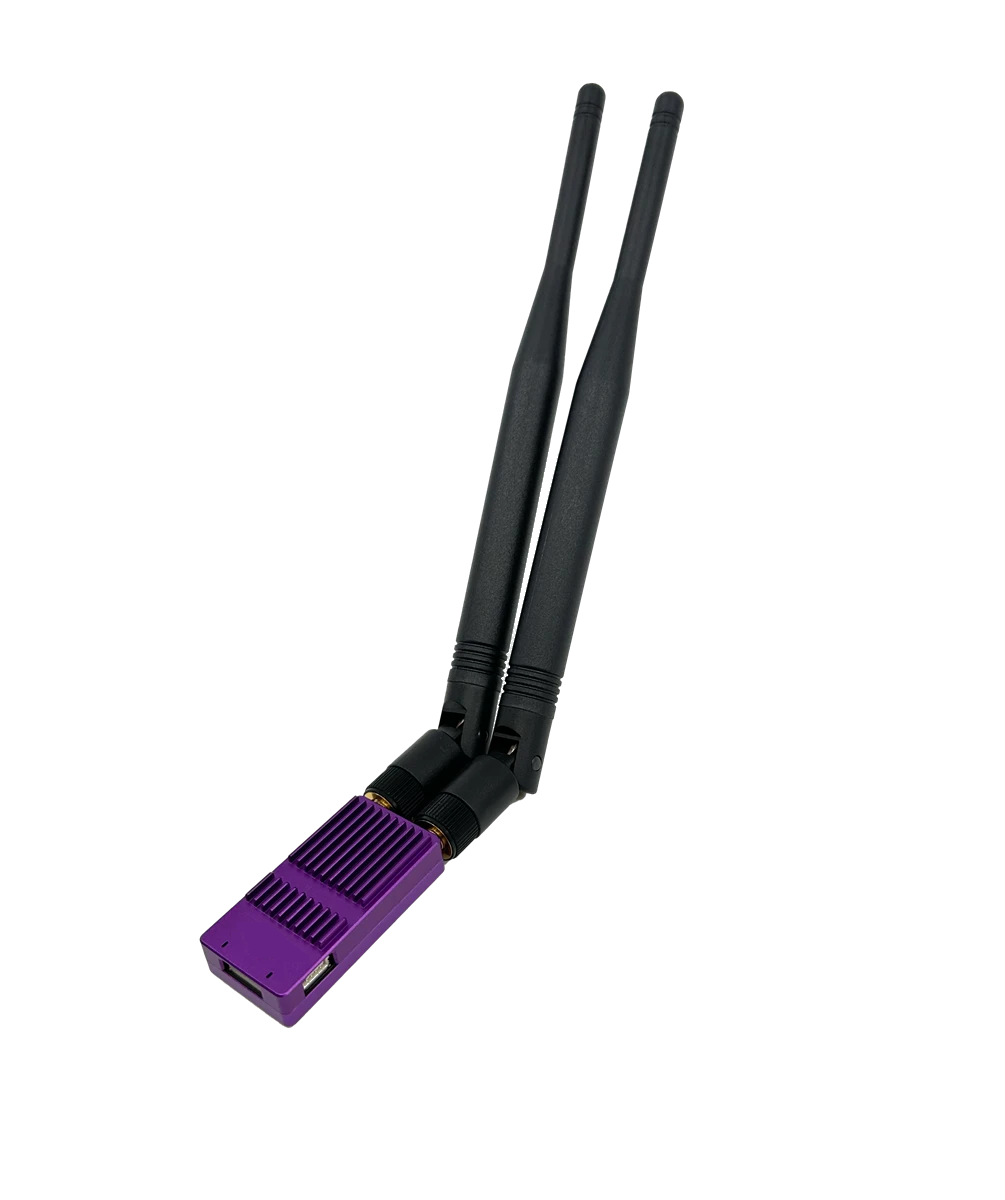

PN M10084 M10131 M10135 M10114
HW revision H C B C
Firmware Ardupilot SiK Ardupilot SiK Ardupilot SiK proprietary, customizable add-ons
Radio Module Si1030 Si1060 Si1060 u-Blox ODIN-W2
Frequency (* alternate freq is a different board) 915/433 MHz* 915/868 MHz* 915/868 MHz* 2.⅘ GHz
Max. output power 28 dBm 20 dBm 20 dBm 18 dBm
Mechanical related
Dimensions w/o antenna(s) (length x width) 54.7 mm x 24.7 mm 55.7 mm x 25.7 mm 30 mm x 19 mm 34.4 mm X 24.8 mm
Dimensions w/o antenna(s) (height) 11.7 mm 13mm 9.5 mm [3mm w/o JST] 4 mm
Weight 17.3 g 14.4 g 15.5 g 3.6 g
Weight w/ antenna(s) Default: 63.6g / Opt. Two: 45.2g 22.9 g none
Case aluminum plastic none none
USB no yes no no
UART yes yes yes yes
CAN no no no no
I2C no no no yes
Input voltage 5V 5V 5V 5V
Max. current 1.1 A
