CN1 to Control Zero OEM Adapter - R0034

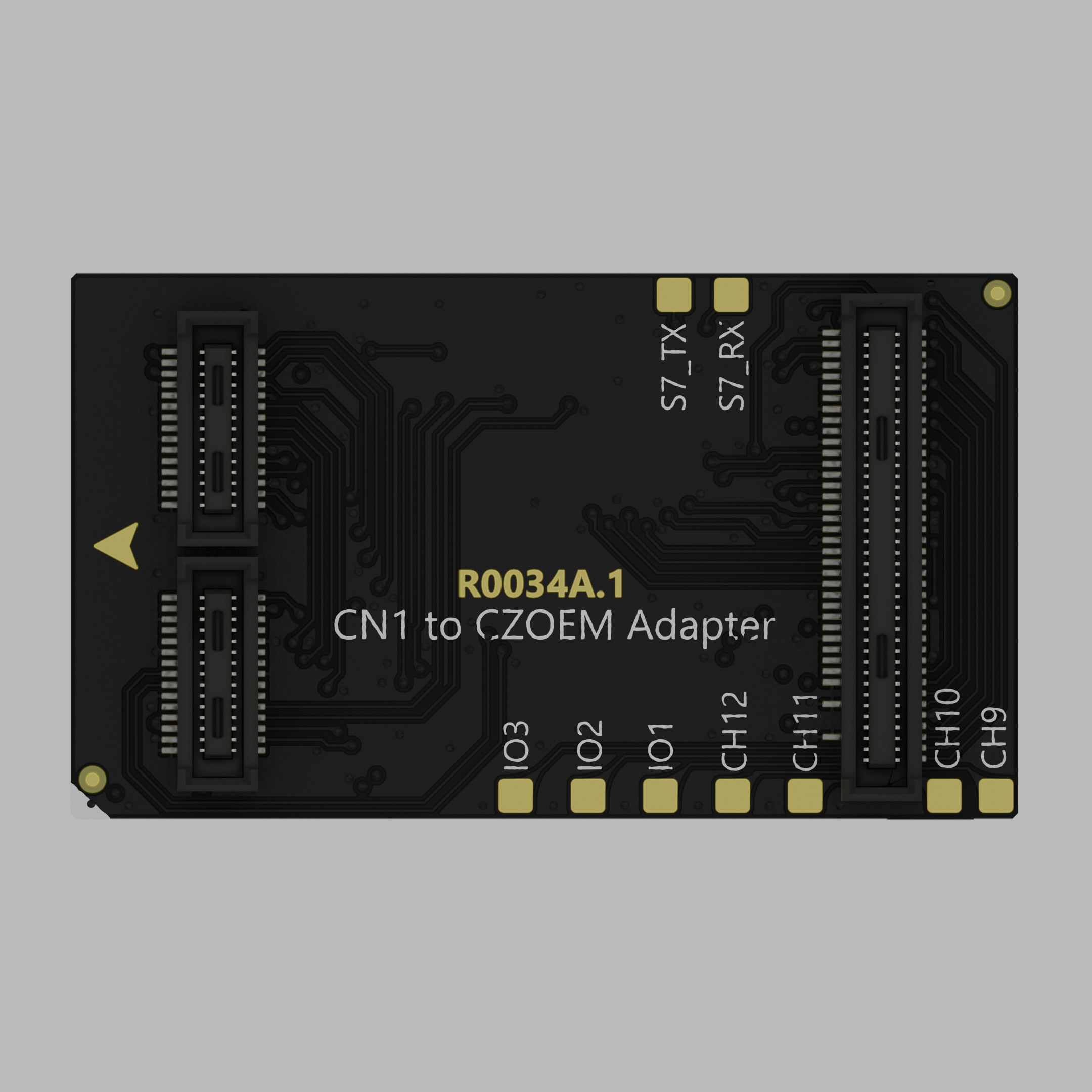

The CN1 to CZ OEM Adapter is an adapter board that enables compatibility between the CN1 flight controller and Control Zero OEM carrier boards. It maps the CN1 connector pinout to the Control Zero OEM interface, allowing the CN1 to be used as a drop-in flight controller solution within Control Zero based systems without requiring custom cabling or board modifications.

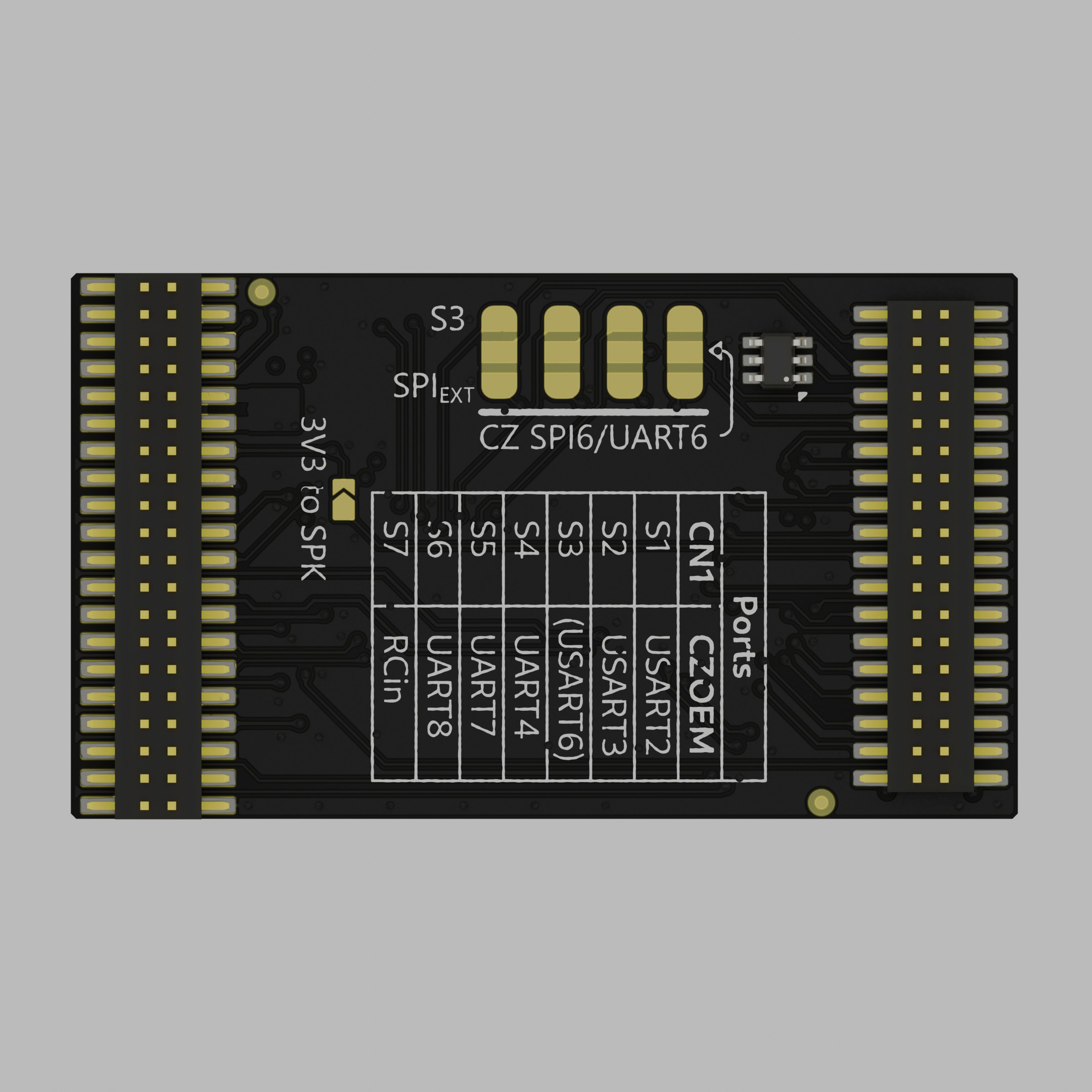

The CN1 has more ports enabled than the CZ OEM so this board has a set of solder jumpers to select the preferred mapping to CN1.
Specifications
| Mechanical Specifications | |
|---|---|
| Dimensions | 35 mm x 20 mm 1.378” x 0.787” |
| Mated height (with CN1) | 9.6 mm 0.378” |
| Weight | 3.7 grams 0.131 oz |
| Ports | |
|---|---|
| Control N1 | CZOEM |
| S1 | USART2 |
| S2 | USART3 |
| S3 | (USART6) |
| S4 | USART4 |
| S5 | USART7 |
| S6 | USART8 |
| S7 | (RCin) |
