R0050 Power Sensor CAN L4
Our new power sensor features the ACS37220 sensor, a fast and efficient high-current sense element covering a 5–36 V DC operating range and supporting continuous current sensing up to 100 A.
The ACS37220 is a Hall-effect based magnetic current sensor with a galvanically isolated current path. The device measures current through an internal conductor with an ultra-low resistance of 100 µΩ, minimizing power dissipation at high currents.
Differential Hall sensing provides strong rejection of common-mode magnetic fields, improving measurement accuracy in electrically noisy environments.
Power supply and communications are exposed through a JST-GH connector, providing CAN, VCC PDB, and GND.
This part includes a 6-pin JST-GH to 4+6 wire.

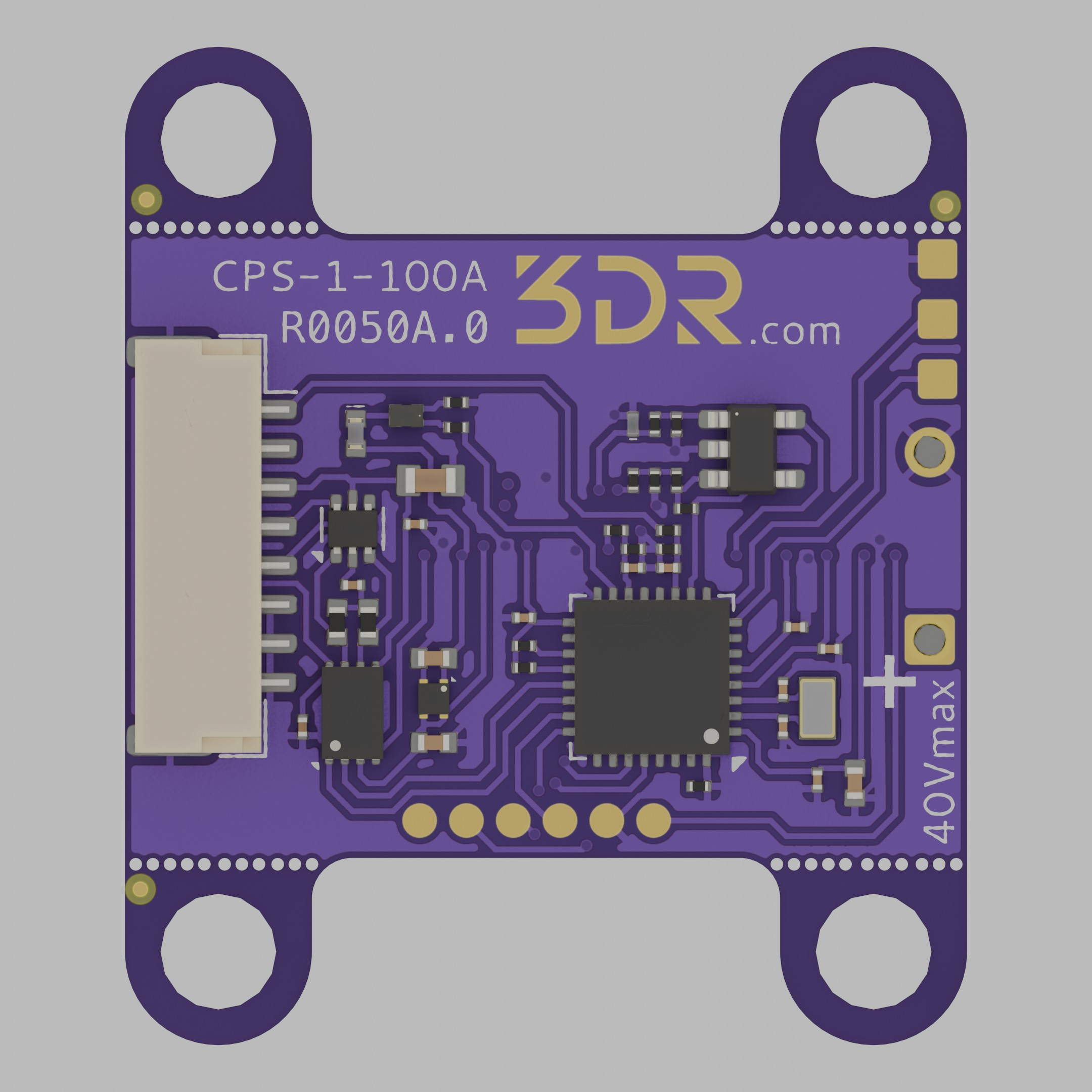

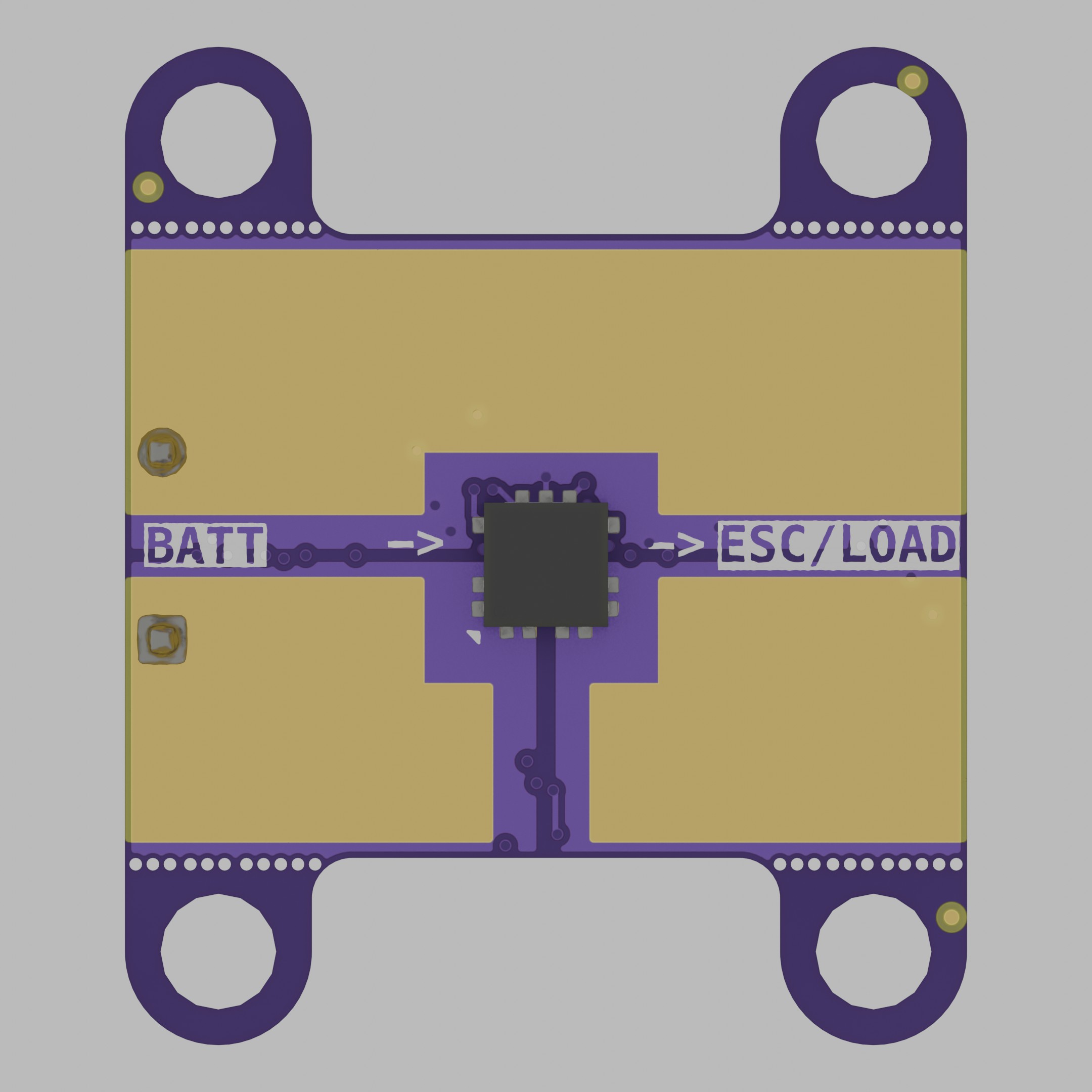

3D View
Section titled “3D View”Specifications
Section titled “Specifications”| System | |
|---|---|
| Supply voltage | 5 - 36 VDC |
| Protocol | DroneCAN |
| Connector | JST-GH 6-pin |
| Compatibility | Ardupilot and PX4 |
| Firmware target | 3DR-L431-PM |
| CoO | USA |
| Sensor | |
|---|---|
| Current sensor | ACS37220 |
| Temperature-compensated range | -40°C to 85°C |
| Operating temperature | -40°C to 85°C |
| Storage temperature | -40°C to 125°C |
| Sensivity | 13.2 mV/A - Typical |
| Mechanical | |
|---|---|
| Total board dimensions | XXmm x XXmm x XXmm |
| Mounting hole dimensions (center distance) | 20.9mm x 25.2mm |
| Board dimensions (no tabs) | XXmm x XXmm x XXmm |
| Sensor Weight | XX g |
Ardupilot
Section titled “Ardupilot”Set the following parameters:
CAN_P1_DRIVER=1/CAN_P2_DRIVER=1BATTx_MONITOR=8 (UAVCAN)
Set the following parameters:
UAVCAN_ENABLE=1UAVCAN_SUB_BAT=2
